Project Description

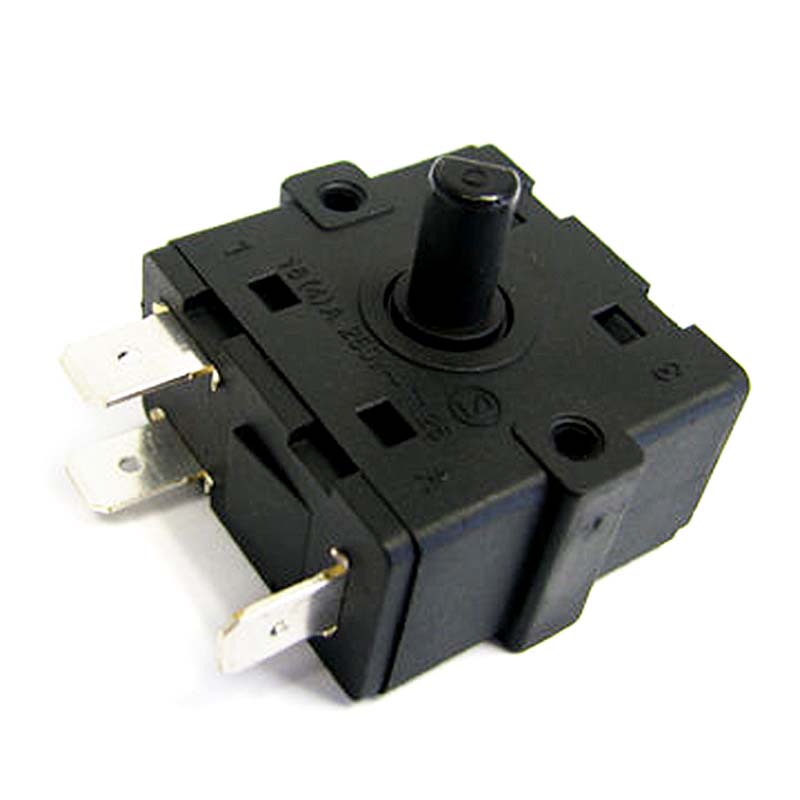

  • 6 Position rotating Switch T125 16A 125V 250V (1)

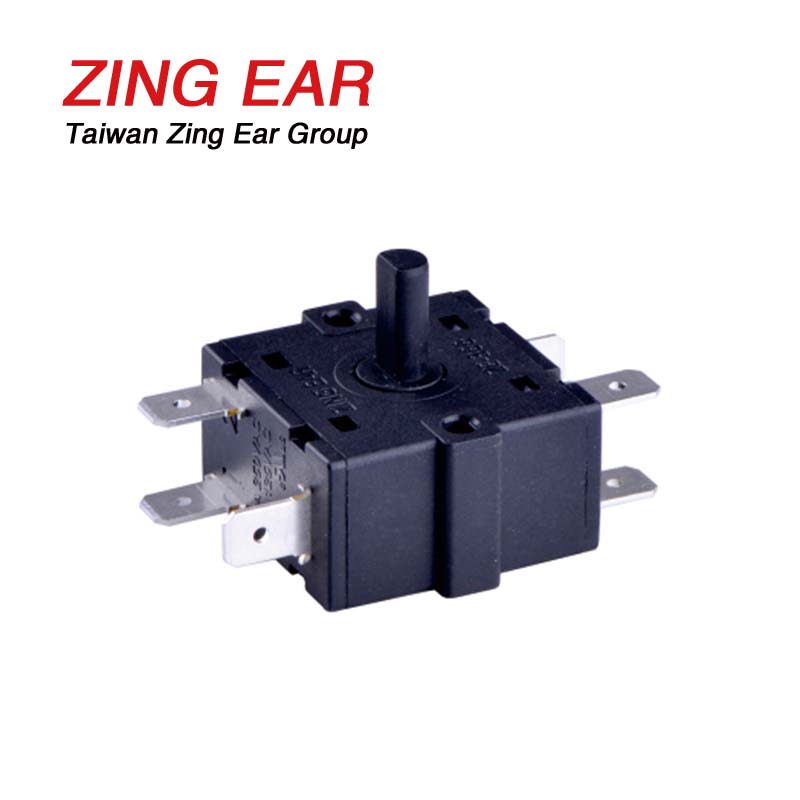

  • 6 Position Rotary Switch T125 16A 125V 250V (4)

Short Description: Zing Ear ZE-336 is a 2 to 6 position rotary switch and the rotation angle has 18, 30, 45, and 60 degrees for options. Meanwhile, 16A 250VAC,  16A 125VAC, and 3A 250VAC, 16A 125VAC rating which is certificated by UL, ENEC, CQC, and CB. So, this item is not only multifarious options but high-quality promise with certification as well.

Item Number ZE-366
Rating 1 16A 250VAC,  16A 125VAC
Rating 2 3A 250VAC, 16A 125VAC
Material Plastic Dos Shell
Terminal 10*6.3*0.8mm Φ1.8mm /10*4.7*0.8mm Φ1.6mm
Certificate UL, ENEC, CQC, CB
Rotation Angle 18°/30°/45°/60°
NO. of Position 2/3/4/5/6
Contact Us

ZE-366 Series 6 Position Rotating Switch Details

The Rotating Switch Features

Zing Ear ZE-336 is a 2 to 6 position rotary switch and the rotation angle has 18, 30, 45, and 60 degrees for options. Meanwhile, 16A 250VAC,  16A 125VAC, and 3A 250VAC, 16A 125VAC rating which is certificated by UL, ENEC, CQC, and CB. So, this item is not only multifarious options but high-quality promise with certification as well. Besides, it can use in the fan, coffee maker, stirrer, and other household appliances.

If you need more details of the switch information, please send us an email, we will reply to you in 12hrs.

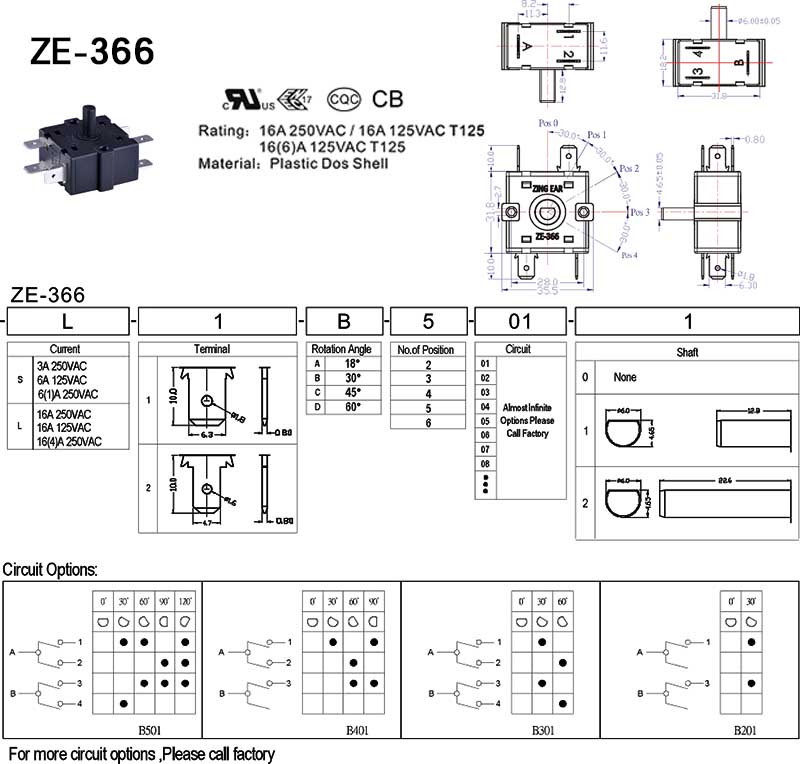

The ZE-366 Rotation Switch Drawing

ZE-366 Rotary Switch Drawing

The ZE-366 Rotation Switch Ordering Introduction

6 Position Rotary Switch Switch Ordering Introduction

Our Advantages

  • Firstly, we are the factory of Zing Ear switch for many years,  so we can provide you the high standard quality micro switch products;
  • Secondly, we have approved by ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC, etc. Therefore, we not only can know your requirement professionally but also we provide you certificates.
  • Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you at the same time.

    What’s more, if you need other electronic components, we can help you to buy them and ship them with our switch.
