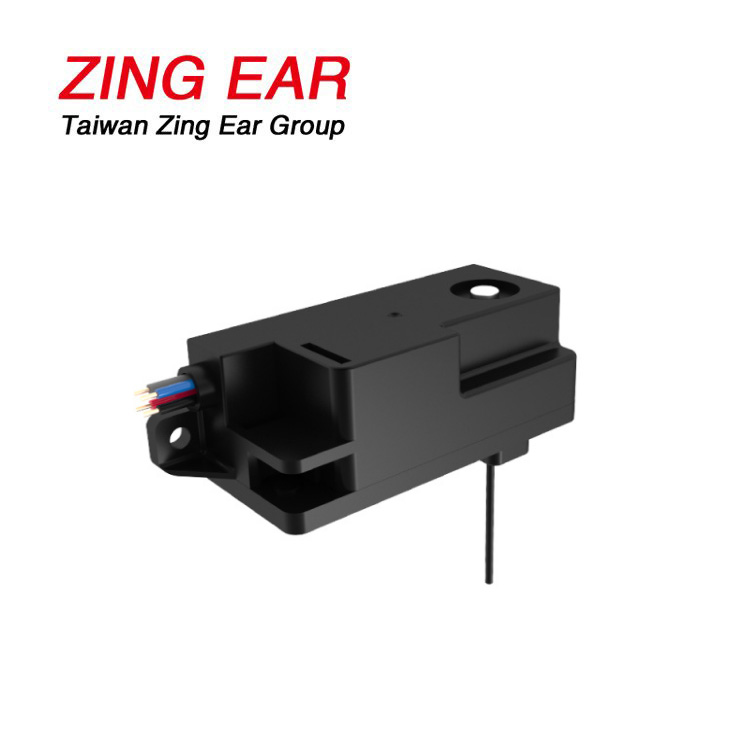

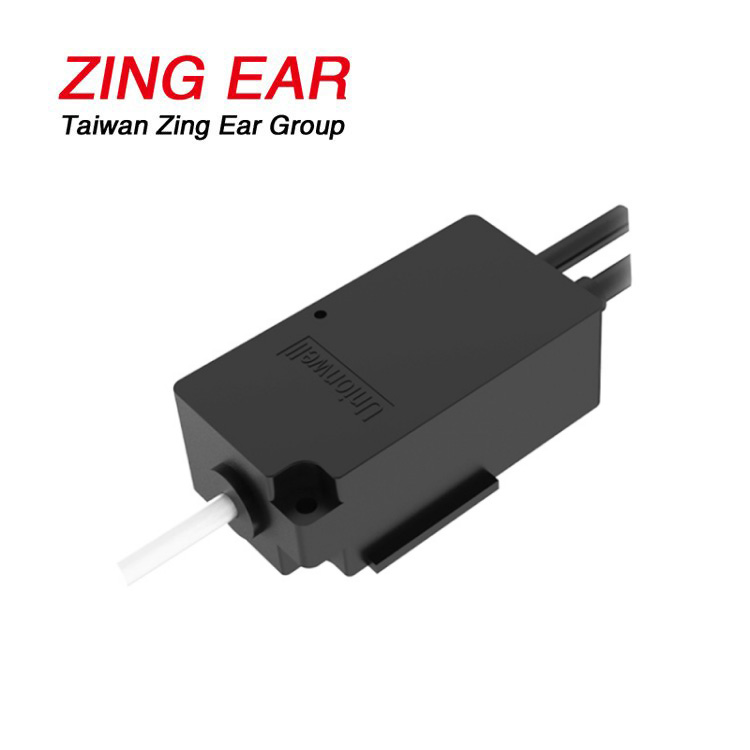

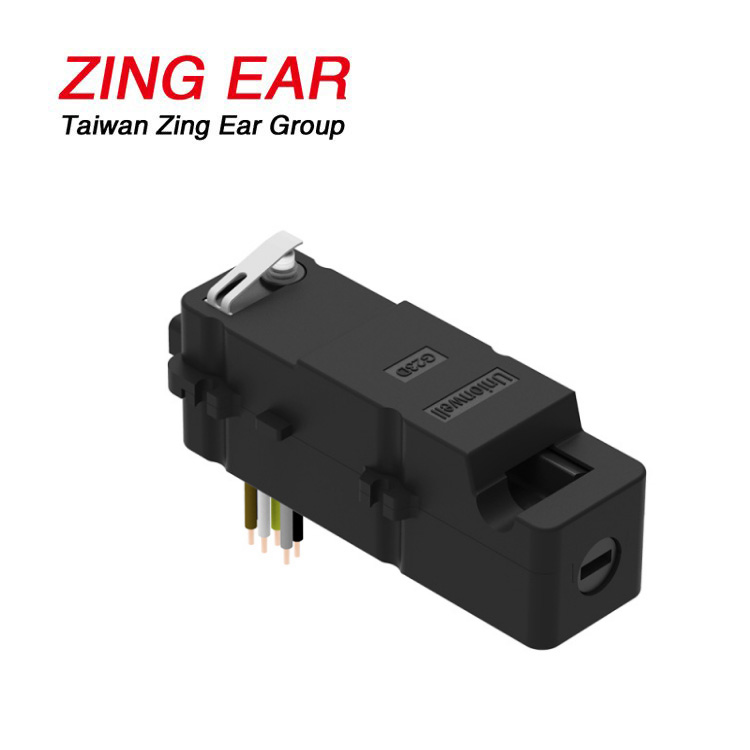

A Motor Electronic Lock is an electromechanical locking device that uses a small motor to engage or disengage the locking mechanism. These locks are commonly used in smart lockers, vending machines, parcel cabinets, safes, access control systems, and electronic doors.
Basic Working Principle
The motor inside the lock receives an electrical signal (e.g., from a microcontroller, keypad, fingerprint reader, or remote system). When activated:
-
The DC motor rotates, driving a gear train.
-
The gear movement pushes or pulls a latch bolt or cam mechanism.
-
Once the action completes, the motor may return to its original position, or the lock may remain in its new state until another signal is received.
Main Components
| Component | Function |
|---|---|
| DC Motor | Powers the lock/unlock movement |
| Gearbox | Converts motor speed into high-torque motion |
| Lock Mechanism | Moves latch or hook to lock/unlock |
| Limit Switches | Detects open/close state and stops motor |
| Housing | Protects internal mechanism, often metal or ABS |
✅ Key Features
-
Low Power Consumption: Typically powered by 6V–12V DC
-
Fail-Safe or Fail-Secure: Remains locked or unlocked when power is lost
-
High Durability: Rated for tens of thousands of cycles
-
Compact Size: Can be embedded into thin panels or doors
-
Controllable: Can integrate with RFID, Bluetooth, keypad, or IoT systems
-
Lock Status Detection: Optional signal output for lock state monitoring
Applications
-
Parcel delivery lockers
-
Smart lockers in gyms, schools, and offices
-
Hotel safe boxes
-
Smart cabinets and toolboxes
-
Industrial vending machines
-
Access control systems
Typical Specifications
| Parameter | Range / Example |
|---|---|
| Operating Voltage | 6V DC / 9V DC / 12V DC |
| Current Consumption | 0.5A – 1A (brief pulse) |
| Holding Force | 1000N or more (depending on type) |
| Unlocking Time | ~1–2 seconds |
| Mechanical Life | ≥100,000 cycles |
| Operating Temperature | -20°C to +60°C |
| Optional Feedback Signal | Open/Close signal output |
Types of Motor Electronic Locks
| Type | Description |
|---|---|
| Solenoid Motor Lock | Uses solenoid and motor combo for fast release |
| Rotary Motor Lock | Uses rotating latch; suitable for doors |
| Sliding Bolt Motor Lock | Gear drives bolt horizontally; common in lockers |
| Hook Lock | Often used in glass door locks or lockers |
