Short Description: The club car accelerator micro switch aways is designed as a simulated roller lever to pressure the lever when the accelerator gives the signal.
| Item Number | G5W11-WZ200A04-W2 |
|---|---|
| Rating | ENEC/CQC: 5A 125/250VAC, 5A 30VDC; UL/CUL: 5A 125/250VAC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 500,000cycles |
| Mechanical Life | 1000,000cycles |
| Installation Hole | Φ3.1mm |
| Protection Level | IP67 |
| Voltage Resistance | AC 1000V RMS (50~60Hz) |
| Operation Force | 200g f |
| Current Code | SPDT |
| Lever Type | 04# Simulated Roller Lever |
 The G5W11-WP200A02-W2 Snap Action Switch Details
The Normally Open Microswitch Features
The club car accelerator microswitch aways is designed as a simulated roller lever to pressure the lever when the accelerator gives the signal, which has the waterproof type and non-waterproof type for options. Meanwhile, this one, our G5W11 is the IP67 waterproof type and the rating is 5A, but we also have the 10A and 0.1A for choice. To meet the requirement of customers from all over the world, our G5W11 switches also have the UL, ENEC, CQC certifications.
Â

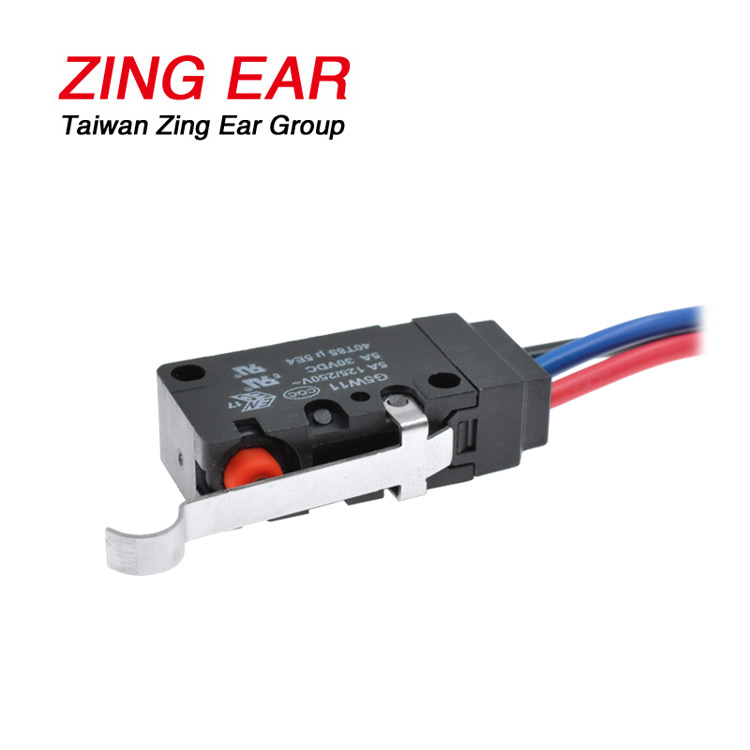

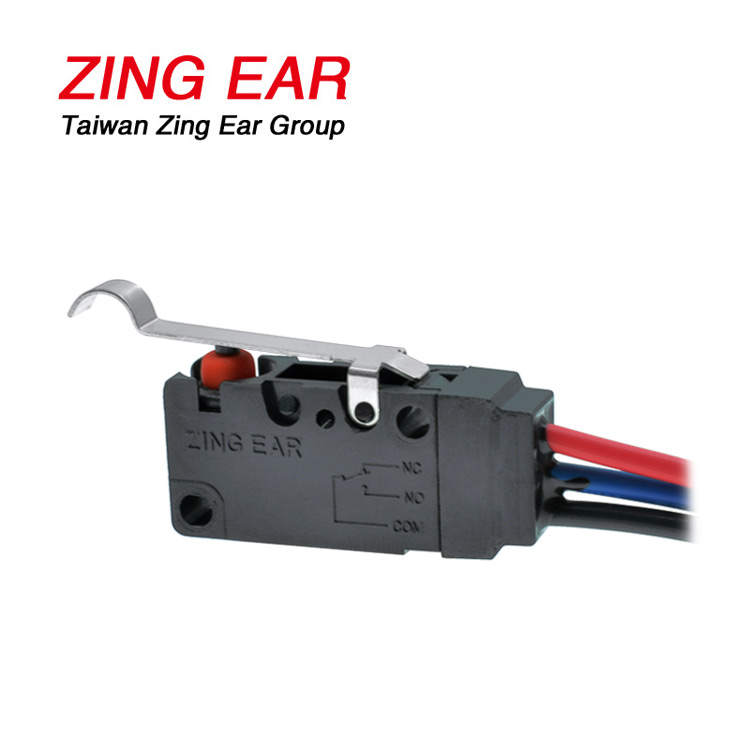

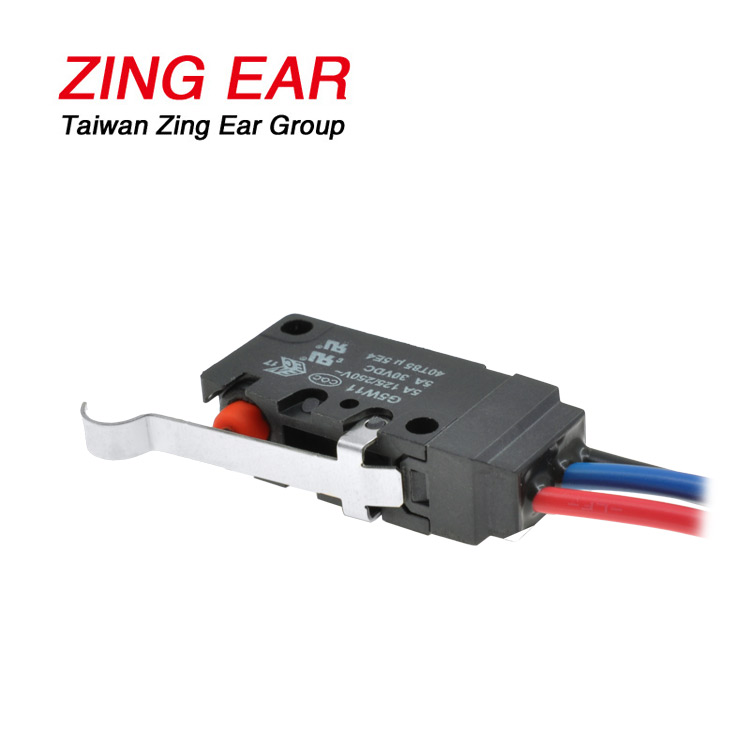

Normally Open Micro Switch Photos

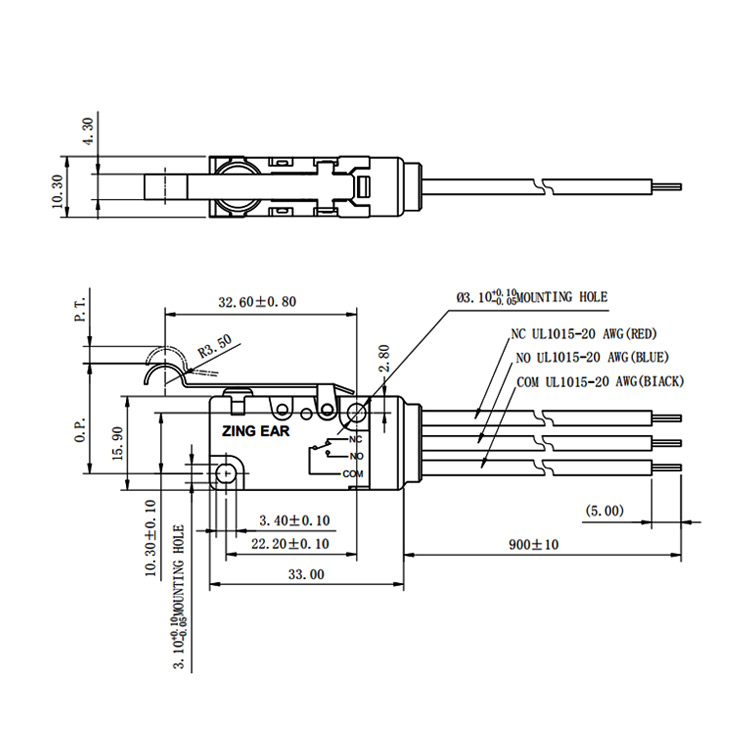

The G5W11-WP200A02-W2 Drawing
Our Advantage
Apart from the certifications for the product, we not only also have ISO 9001, ISO 14001, and IATF 16949 certifications for the production system but also have the ROSH, REACH, CE for materials.Â
Besides, we can prove some free samples before place the orderÂ
