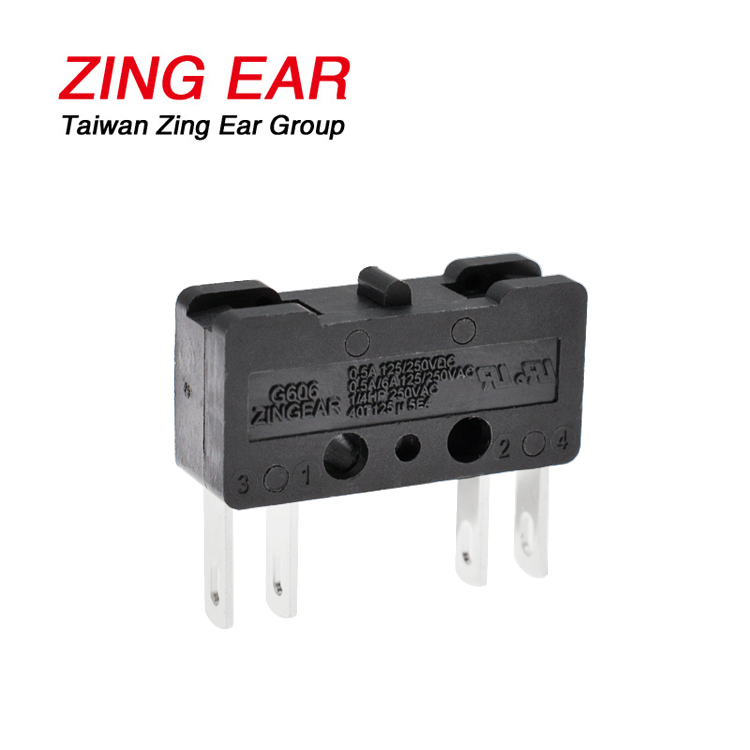

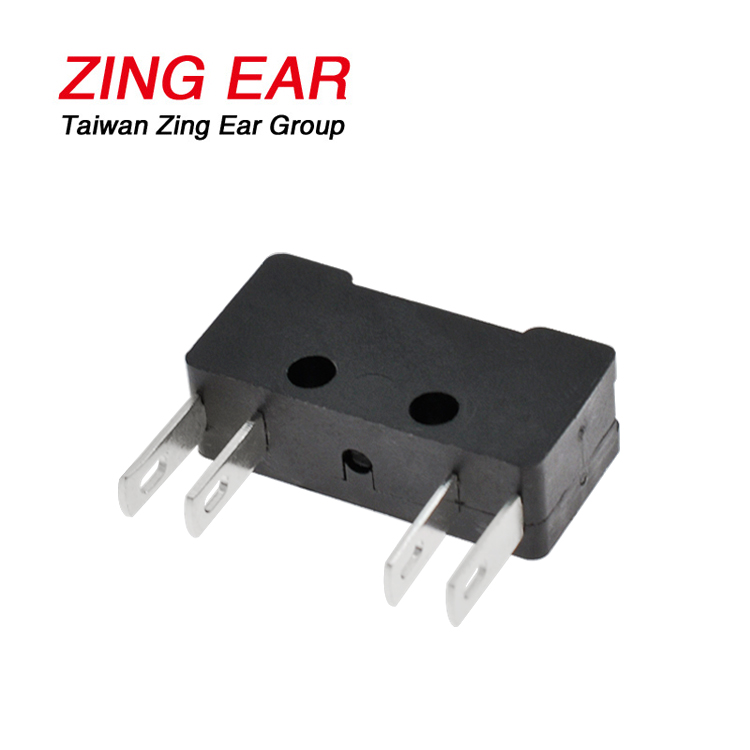

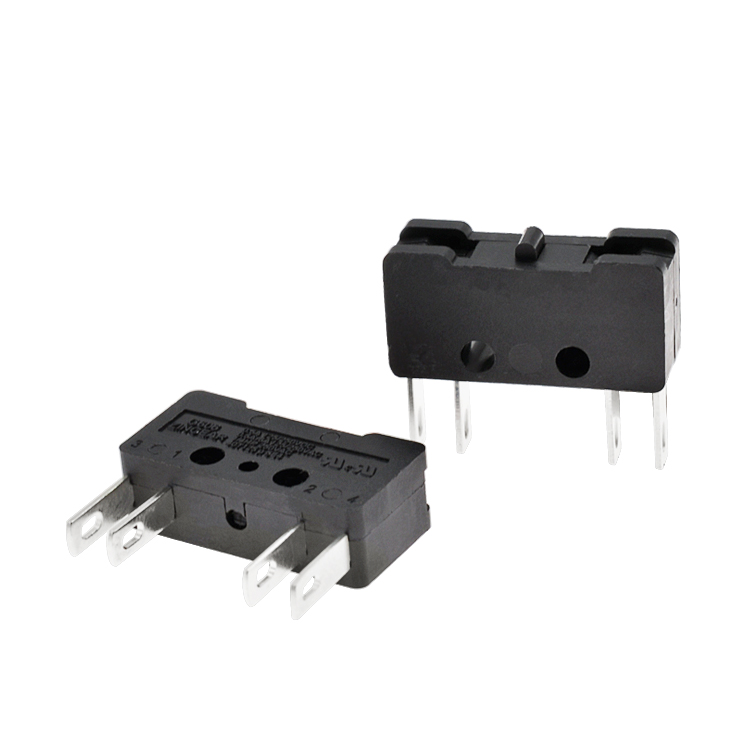

We produce the DPDT Micro Limit Switch to replace the Crouzet 83133169, which is not only high-quality but saves your cost as well. The free sample is available before ordering.
| Item Number | G606-200K00D |
|---|---|
| Rating | 0.5A 125/250VDC 5A/0.5AÂ 125/250VAC |
| Terminal Types | Long Solder Terminal |
| Temperature | -40~125℃ (40T125) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ2.5mm |
| Current Code | DPDT |
| RF | 40gf Min |
| OF | 200gf Max |
| OP | 7.7±0.3mm |
| Lever Type | without lever |
DPDT Micro Limit Switch Details Description
DPDT Micro Limit Switch Features
We produce the DPDT Micro Limit Switch to replace the Crouzet 83133169, which is not only high-quality but saves your cost as well. And, the switch is also certificated by the UL, cUL, CQC, and ENEC. Meanwhile, the rating of the switch is 0.5A 125/250VDC and 6A 125/250VAC, so you can use it below this rating. For example, if the operating environment is 0.1A and 30VDC or 5A 250VAC, the switch will work well in it.
Besides, if you need some samples to test before ordering, we are also available. We have a various micro limit switches for your options.
DPDT Micro Limit Switch Features
How to choose an item you want?
Huizhou Granye Industrial Co., Ltd
As an illustration, you can see the picture from the left side. It not only show the parameters of this series microswitch, but you can choose your item easily as well.
For example, if you need a switch in 0.1A 48VDC 6.3*0.8mm terminal Long straight lever SPDT 100gf operating force and MAX 85℃. You can choose our G5S05-CA100A06. However, if you are not sure, you also can tell us your requirement, we will recommend an item for you.
Our Advantage
