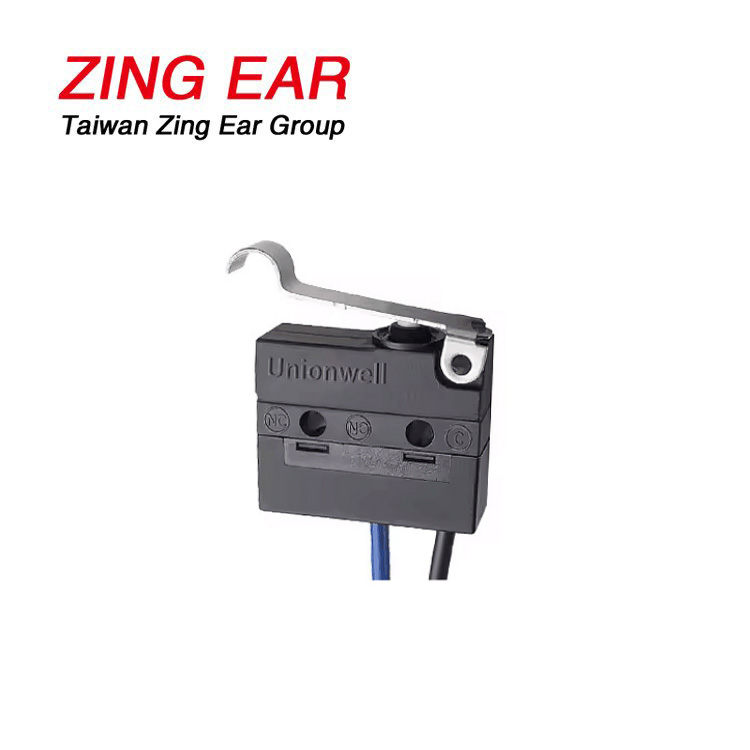

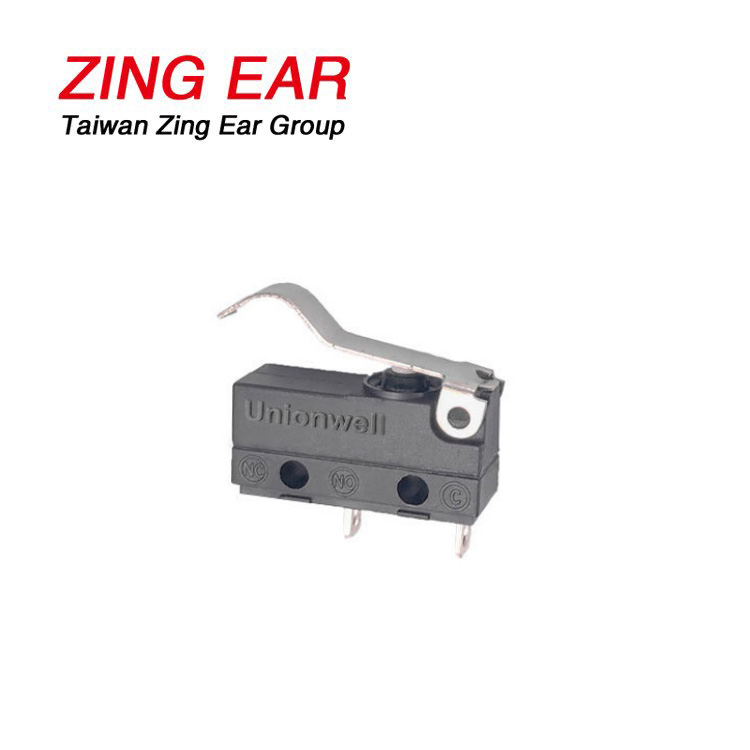

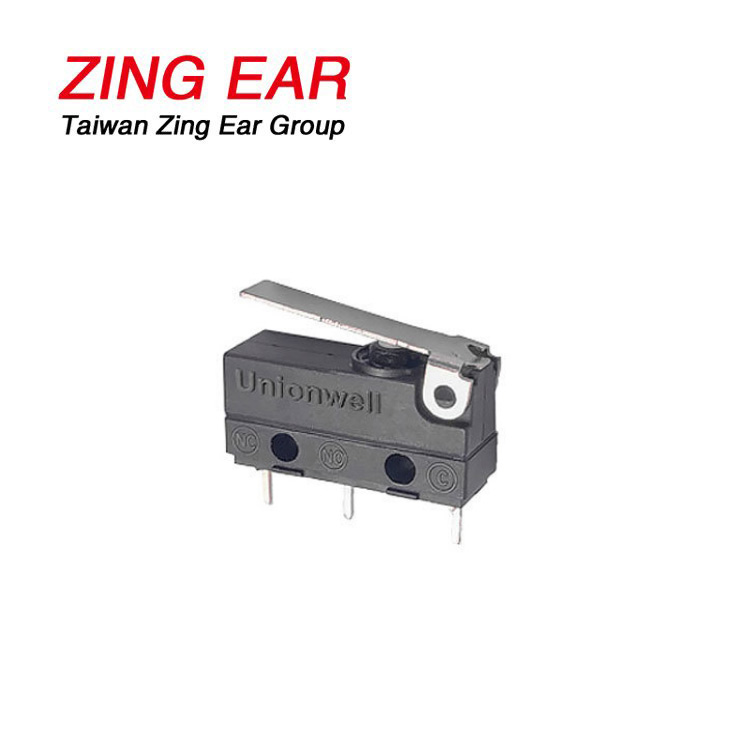

Waterproof and dustproof IP67 design – small size and compact structure
Short Description: G905 Brand Name:ZINGEAR/Unionwell
Terminal type: straight PCB terminal
Operating handle type: short straight handle 17.7mm
Contact form: single pole double throw
Certificate: All products have obtained major global safety certifications
Company guarantee system: ISO9001, IATF16949 and ISO14001
Microswitch Details
Applications: driver’s seat,Automobiles, telephones, air conditioners, calculators, humidifiers, alarms, calculators, mixers, fax machines, pencil sharpeners, food processors, toy cars, lighting equipment, electric frying pans.
Features
-Waterproof and dustproof IP67 design
-Small size, compact structure
-Long life, high reliability
-Complete variety of terminal blocks
-Equipped with various operating handles
Products Description
| Rating | p1 | 0.1A 125/250VAC 48VDC/Contacts available with gold plating |
| 05 | UL:5A 125/250VAC
ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ25T120 |
|
| Operating frequency | electric | 10~30cycles/minute |
| mechanical | 120cycles/minute | |
| Initial contact resistance | 100mΩMax/It depends on the wire length for the type with wire | |
| Insulation resistance(at 500VDC) | 100M Ω Min | |
| Dielectric strength | AC1,000V RMS (50~60Hz) | |
| Storage temperature | -25°C~+120°C | |
| Storage humidity | 85%RH Max | |
| life | electric | 10,000cycles/Depends on model |
| mechanical | 500,000cycles | |

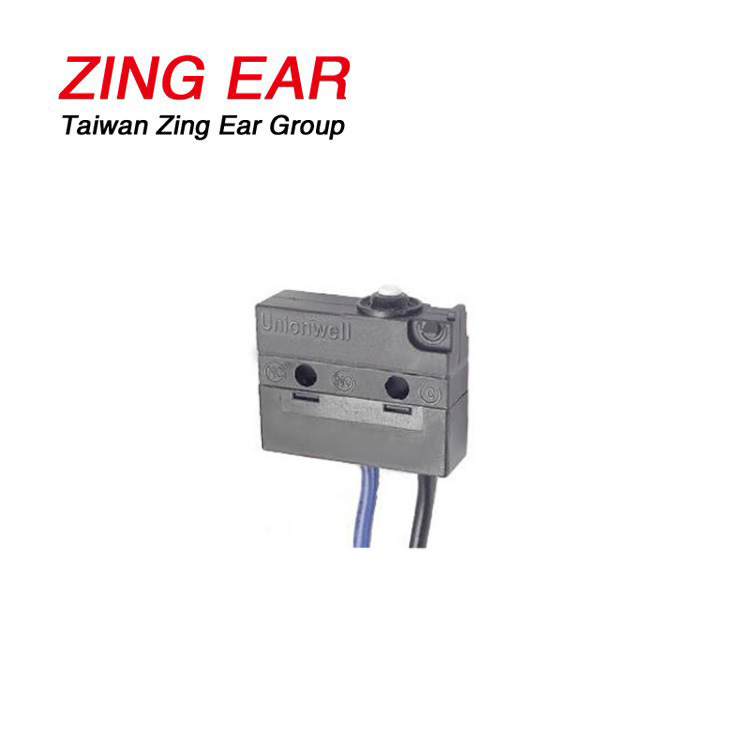

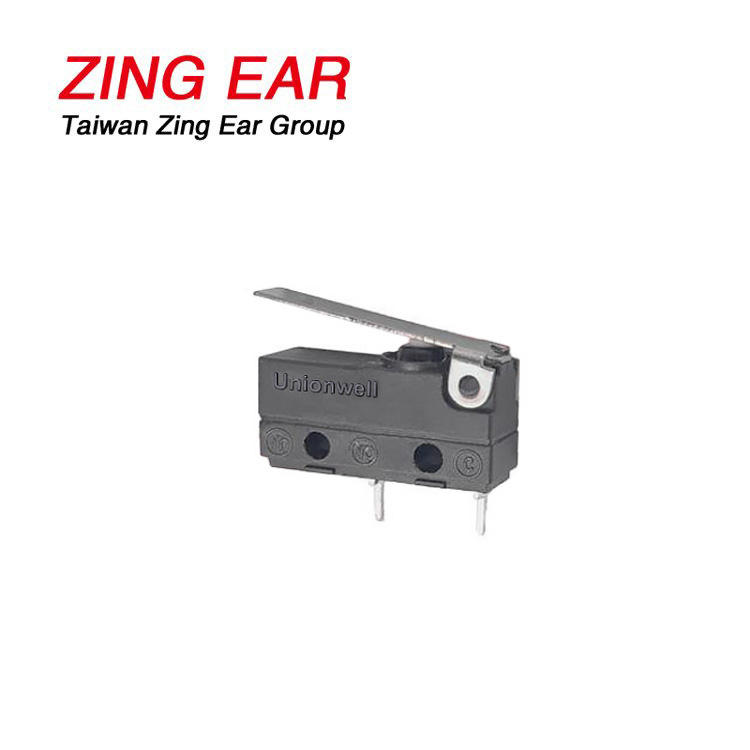

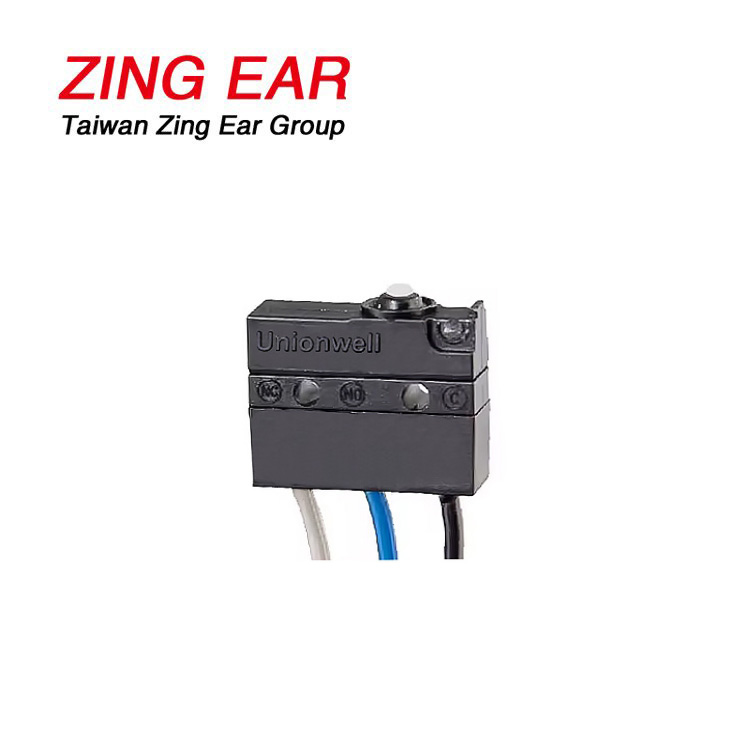

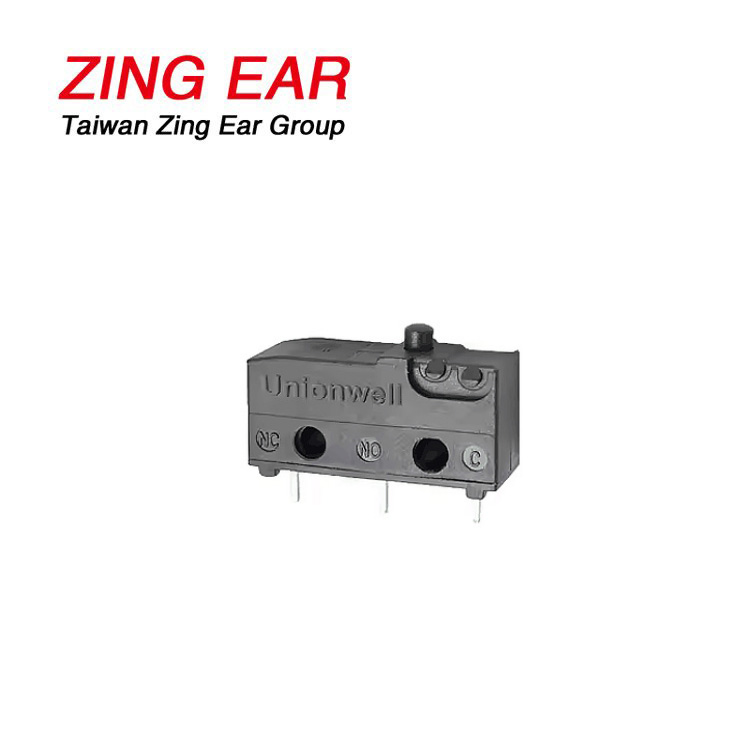

Related Products
Packing&Shipping
FAQ
Q1: Are you a trading company or manufacturer?
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:Normally,We have only accept the MOQ is 100pcs.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Could you offer us free samples?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 2-5 days.
Q5. what is the leading time of mass production? A: About 2-4 weeks.
Q6: what is the capacity per month? A:It is over 8 million pieces per month for micro switch series,and over 20 million pieces per month for keyboard switch series.
