G606 Zing Ear DPDT 0.5A 125/250 VDC Micro Switch

Item NumberG606-200K12EK
ENEC/CQC Rating0.15A 125/250VAC 0.5A/6A 125/250VAC
Operation Force200gf
Temperature-40~125℃ (40T125)
Electrical Life50,000~100,000cycles
Terminal TypesLong Solder Terminal
Dielectric StrengthAC 1000V RMS (50~60Hz)
LeverStraight Lever with hole
Contact Us

G606 DPDT Micro Switch Details

Microswitch Fetures

  1. Fist of all, G606 is a miniature micro switch with global safety approvals. For example, ENEC, CQC, UL and CUL.
  2. Meanwhile, our microswitch has vareity of terminals and levers for option, in other words you can use it not matter in household appliance or industrial equipment, like air conditioner, computer, humidifier, Timer, water pump, toy, and so on.
  3. On the other hand, it is high quality and long life. For example, the mechanical life is at least 1000000 cycles.
  4. In addition, the small compact size and reliable quality can meet most of requirement for your project.
  5. Actually, we can provide custom server to you. For example, custom a lever, a terminal, ect.
  6. In conclusion, our micro switches are widely use with high reliability, so they should be your perfect choice.

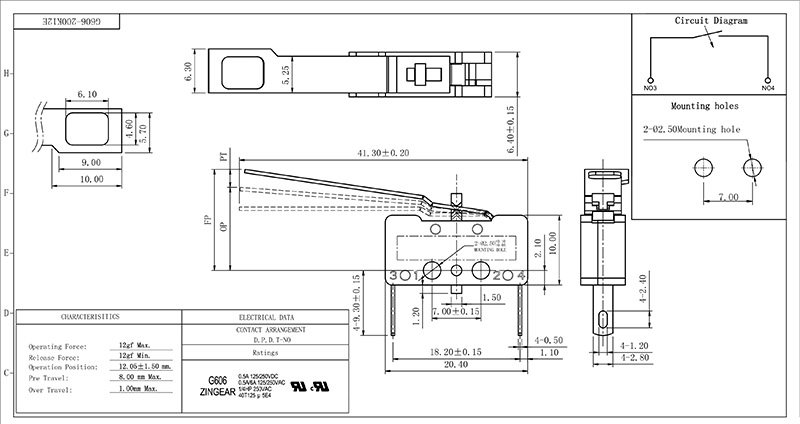

Zing Ear DPDT 0.5A 125/250 VDC Micro Switch Drawing and Photoes

Zing Ear DPDT 0.5A 125/250 VDC Micro Switch

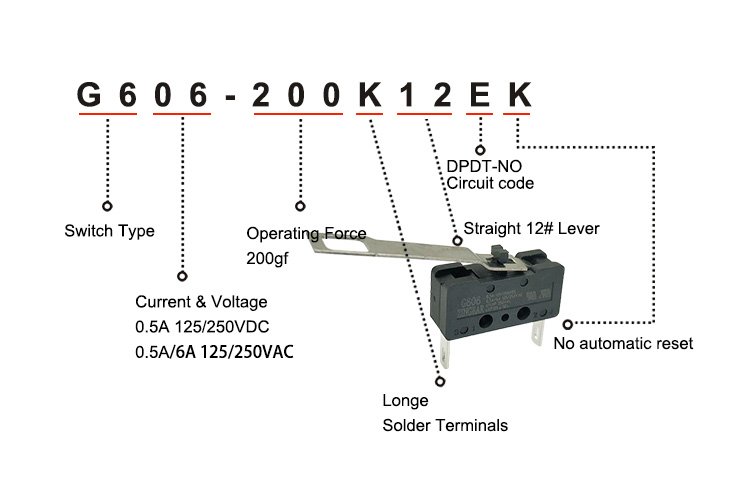

The Micro Switch Item Explain

Snap Action Micro Switch
As you can see, we can do the parameters as you want. So you can contact us to tell us your request. For instance, the terminal size, operating force, lever type, and etc. all of them can be custom. Therefore, we can provide all micro switch and other product you need to you satisfactorily.
Zing Ear DPDT 0.5A 125/250 VDC Micro Switch

Our Advantage

Why choose us?

  • Firstly, we are the factory of Zing Ear switch for many years,  so we can provide you the high standard quality micro switch products;
  • Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
  • Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
  • What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
