G9A Weatherproof Snap Action Lever Micro Switch

Item Number G9A05-200G01BF-120
Rating 5(2)A 125/250VAC, 5A 30VDC
Dielectric Strength AC 1000V RMS (50~60Hz)
Temperature -45~85℃ (45T85)
Electrical Life 50,000~200,000cycles
Dimension 15.5*20*6.4mm
Waterproof rate IP67
Terminal Type Lead wire (Left)
Operating Focus 200gf
Lever 01# Lever
Circuit Code SPST Normally Closed
Contact Us

G9A05 Micro Switch Details

Microswitch Fetures

  1. This micro switch is IP67 waterproof and dustproof, so that you can use it in a wet and outdoor environment.
  2. Meanwhile, our Weatherproof Snap Action Lever Micro Switch has vareity of terminals and levers for option, in other words you can use it not matter in household appliance or industrial equipment and Auto Electronics.
  3. On the other hand, it is high quality and long life. For example, the mechanical life is at least 200,000 cycles.
  4. The small compact size can meet your requirement in dimension.
  5. In conclusion, our Water Proof Mini Snap ction switch are widely use with high reliability, so they should be your perfect choice.

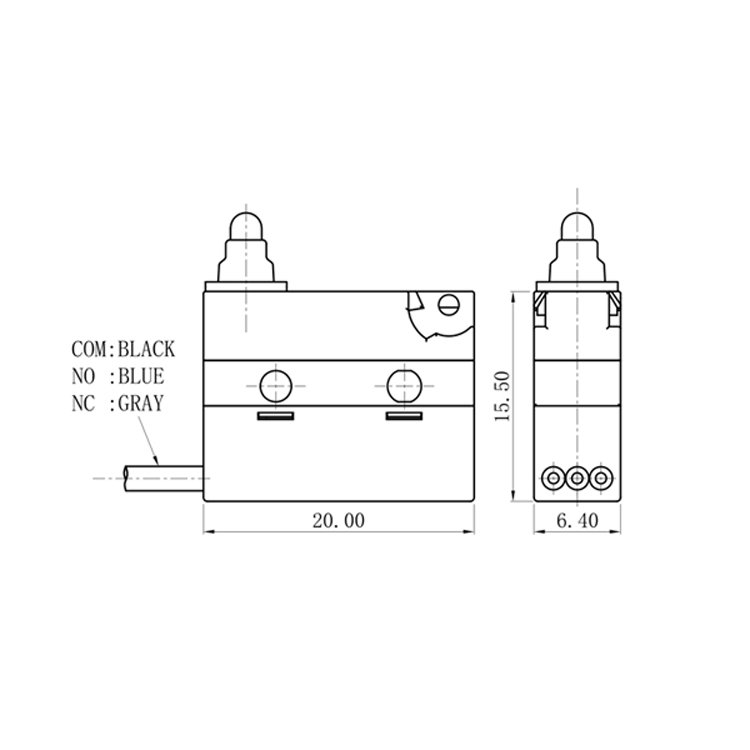

Drawing

Water Proof Mini Snap ction switch

The Micro Switch Item Explain

Weatherproof Snap Action Lever Micro Switch
As you can see, we can do the parameters as you want. So you can contact us to tell us your request. For instance, the terminal size, operating force, lever type, and etc. all of them can be custom. Therefore, we can provide all micro switch and other product you need to you satisfactorily.

Photoes

Weatherproof Snap Action Lever Micro Switch
Weatherproof Snap Action Lever Micro Switch
Weatherproof Snap Action Lever Micro Switch

Our Advantage

Why choose us?

  • Firstly, we are the factory of Zing Ear switch for many years,  so we can provide you the high standard quality micro switch products;
  • Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
  • Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
  • What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
