KPPI Series PP Float Switch
KPPI 3 wire PP float switch can control water liquid level as well as a sensor for water dispensers, coffee machines, etc. The SAMPLES & DATASHEETS are available.
MPN: KPPI-70A-1L-1H-GY01
Material: Float Body, Ball, E-ring, and screw nut is the white PP; O-ring is silicon;
Wire: UL1007 24# Black/Red/ White
Contact From: A
Max. Parameters: 10W, 220VDC, 2.5A
Operating Temperature: -10 to 200℃
Material Certification: UL & ROHS
Sample & Datasheet & Quotation:Â Available
3 Wire Water Level Sensor Description

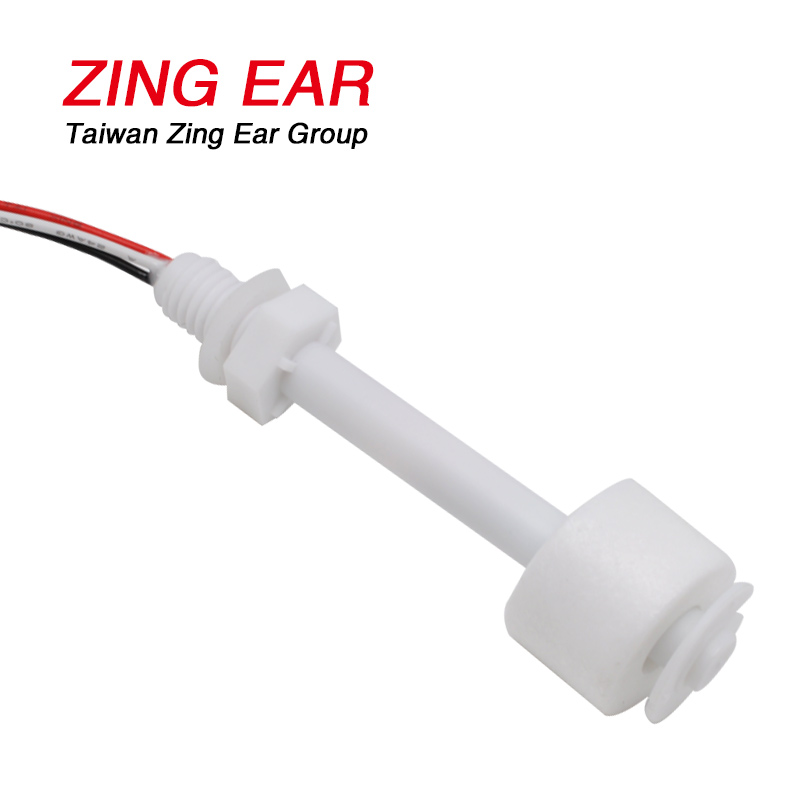

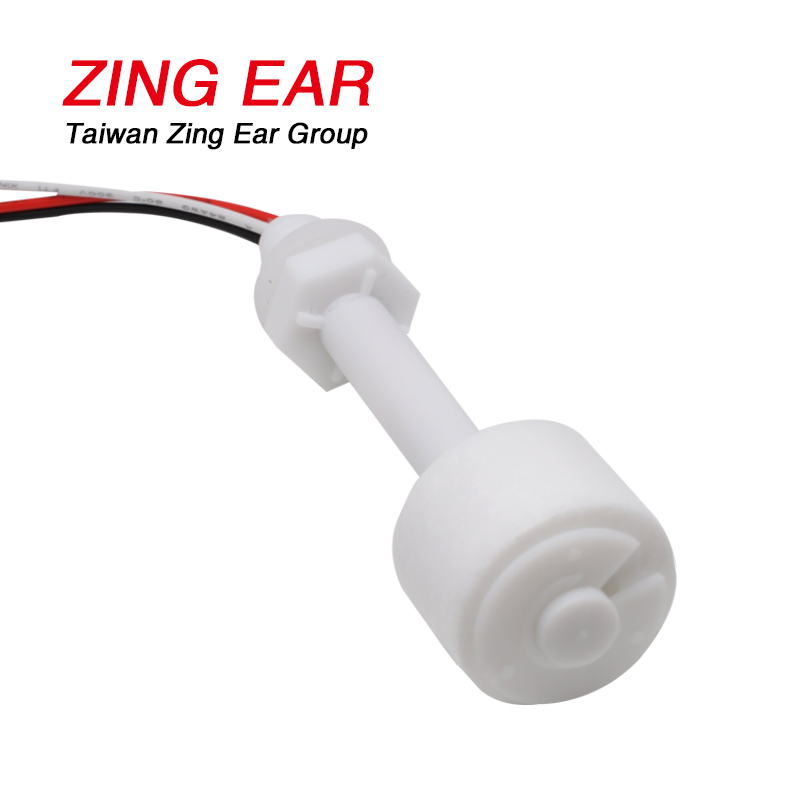

KPPI PP Float Switch Pictures
Water Level Switch Details Information
The KPPI-70A-1L-1H-GY01 is a 3-wire custom PP float switch liquid water level sensor that is designed for the water purifier, and its material has the UL & ROHS certification. Its Max. contact rating is 10W, Max. switching voltage is 220 VDC, Min. breakdown voltage is 300VDC and Max. switching current is 2.5A. The operating temperature is from -10 to +200 degrees. Meanwhile, the PP float switch is not only can be used in the water medium but the oil & another medium as well. So, you can tell us your requirement to custom the products.
Besides, the PP water level sensors have a wide range of applications, such as dispensers, electric solar water heaters, air conditioners, humidifiers, and so on. Welcome to contact us to get a sample or other information.
KPPI-70A-1L-1H-GY01 Switch Drawing
Please contact us to get the whole datasheet
KPPI PP Water Level Sensor Video
