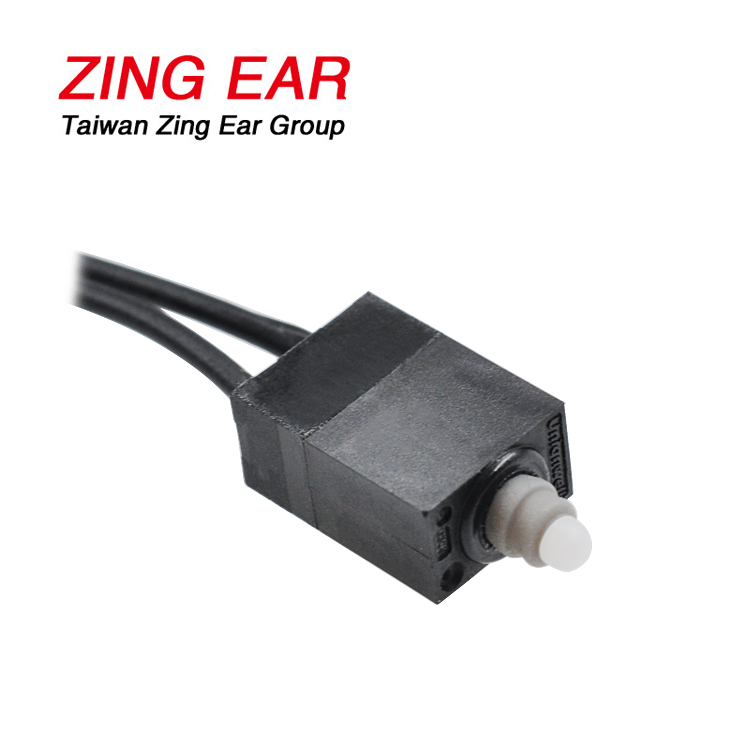

12V DC Micro Switches Short Description:Â This is a mini-size with an IP67 waterproof function which can be used in many devices such as the EV charger, and automotive doors.
| Item Number | G309-150M00E39-GA300E |
|---|---|
| Rating | 0.1A 12VDC, 5mA 10VDC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 300,000 cycles |
| Mechanical Life | 500,000 cycles |
| Protection Level | IP67 |
| Insulation Resistance | 100mΩ Min |
| Dielectric Strength | 500VAC(50-60Hz) |
| Operation Force | 150g f |
| Current Code | SPST-NO |
| Lever Type | Without Lever |
12V DC Micro Switches Details
The 12V DC Microswitch Features
This is a mini-size with an IP67 waterproof function which can be used in many devices such as the EV charger, and automotive doors.
The G309-150M00E39-GA300E is a momentary microswitch normally open(SPST NO) with a rating in 0.1A 12VDC and 5mA 10VDC. Which has a 300,000 cycles electrical and a 500,000 cycles life, long life, and reliability. Generally, it will be used in the EV charger, EV port cover, as well as other devices that want to show the electrical signal. The reason why our G309 is so popular on the market is because of its waterproof function and reliable quality.
Meanwhile, we are welcome to provide the sample to test at the beginning. and the free samples are available after we confirm the information with you. If this model is not what you looking for, the customer also can tell us their requirement, we can do the customized service for you.
