Project Description

  • DPDT Slide Switch ON-ON Small 3A 250V 6A 125VAC (3)
  • DPDT Slide Switch ON-ON Small 3A 250V 6A 125VAC (1)
  • DPDT Slide Switch ON-ON Small 3A 250V 6A 125VAC (2)
Item Number ZE-209B
Rating 3A 250VAC/ 6A125 VAC/ 3(1)A 250VAC
Material Plastic Base
Function DPDT: ON-ON
Contact Us

ZE-209B Switch Details

ZE-209B Slide Switch Features

For the ZE-109B series slide switch, we have many specifications for the choice. Firstly, the circuit diagram, at least 7 types of choice for you. For more detail, please see the drawing or contact us. Secondly, there 7 kinds of terminals we can provide, such as PCB, Solder, and Quick Connect Terminal. Thirdly, if you need other knobs, you can see from our drawing, it is 12 kinds of them for the options.

Meanwhile, the series is widely used in toy control, machine, device, equipment, and so on. Besides, the item has UL, CUL, DVE, TUV, CQC certification.

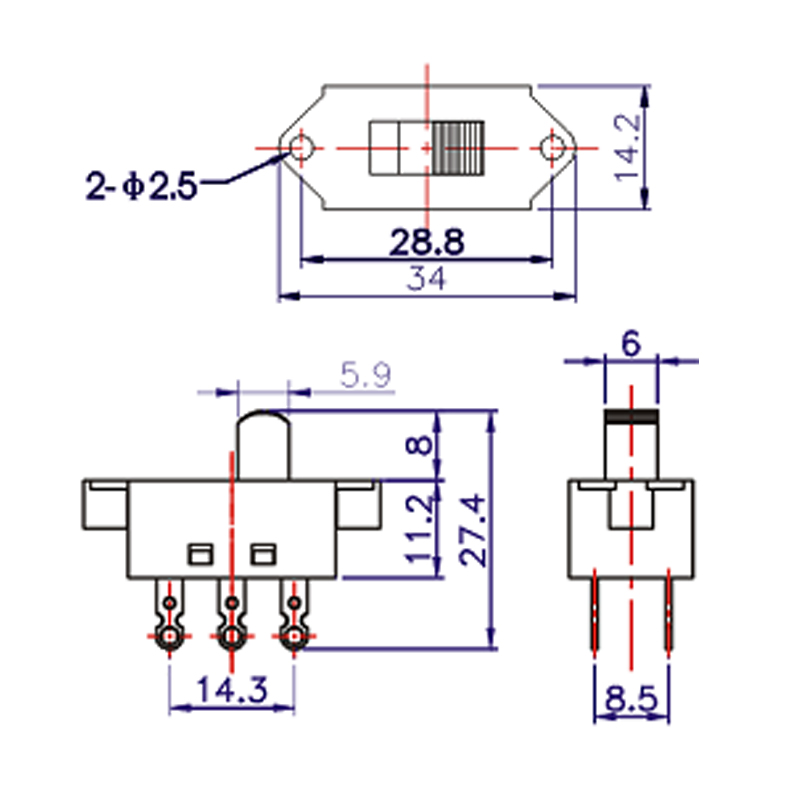

The ZE-209B DPDT Slide Switch Drawing

DPDT slide switch drawing

Our Advantage

Why choose us?

  • Firstly, we are the factory of Zing Ear switch for many years,  so we can provide you the high standard quality micro switch products;
  • Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
  • Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
  • What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
