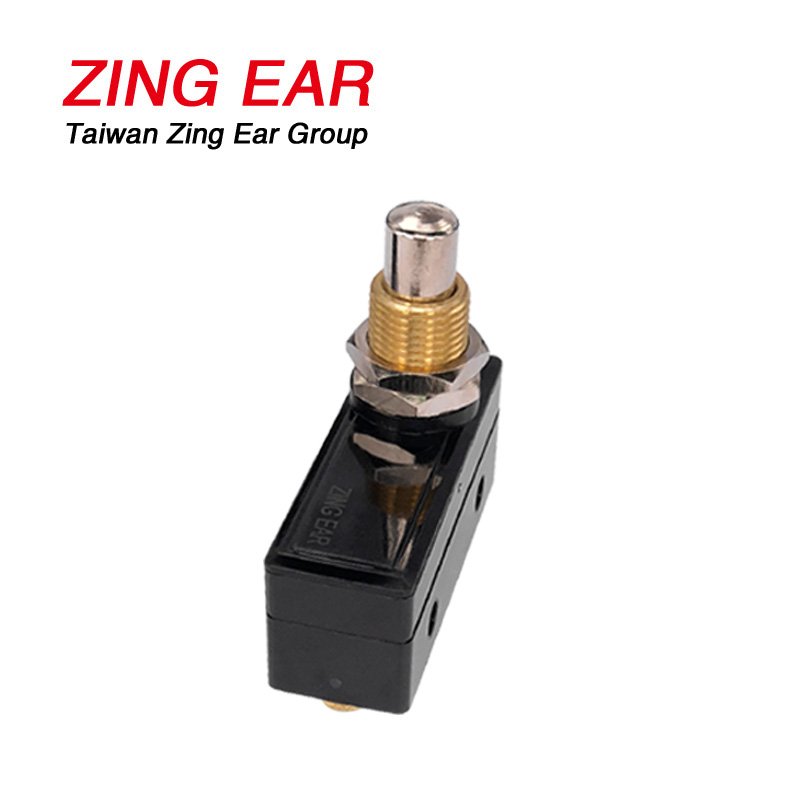

G12 Large Basic Limit Switch
Model Number: G1216-1RQ1AB
– Housing are Made of High Temperature Bakelite
– High Sensitive Differential Travel
– Precise Operation Repeatability
– Long Mechanical Life
– ENCC/CQC Approved
– Mechine Tools,Elevators
– Auto Production Line, Automation Applications
– Cililian, industrial Mechiney Field
Product Parameters
|
Rating-16A
|
ENEC/CQC
16A 125/250V or 480VAC 1/8HP 125VAC 1/4HP 250 VAC 0.5A 125VDC 0.25A 250VDC UL/cUL 16A 125/250VAC 5E4 U 40T85 |
|||
|
Rating-22A
|
ENEC/CQC
22A 125/250V or 480V 1/4HP 125VAC 1/2HP 250 VAC 0.5A 125VDC 0.25A 250VDC UL/cUL 22A 125/250VAC 5E4 U 40T85 |
|||
|
Rating-26A
|
ENEC/CQC
26A 125/250V or 480V 1/2HP 125VAC 1HP 250 VAC 0.5A 125VDC 0.25A 250VDC UL/cUL 26A 125/250VAC 5E4 U 40T85 |
|||
|
Operating Frequency-Electrical
|
10-30 cycles/minute
|
|||
|
Operating Frequency-Mechanical
|
240 cycles/minute
|
|||
|
Contact Resitance (Initial Value)
|
50mΩ Max
|
|||
|
Insulation Resistance (at 500VDC)
|
100MΩ Min (at 500VDC)
|
|||
|
Dielectric Strength-between terminals
|
1500 VAC 50/60Hz 1min
|
|||
|
Dielectric Strength-between terminals and housing
|
2500 VAC 50/60Hz 1min
|
|||
|
Storage Temperature
|
-40℃~ + 85℃
|
|||
|
Storage Humidity
|
85% RH max
|
|||
|
Service Life-Electrical
|
50,000~100,000cycles(Depend on part No.)
|
|||
|
Service Life-Mechanical
|
1,000,000cycles
|
|||
|
Unit Net Weight
|
Approx 60g (Drip proof panel mounting type)
|
|||
Product Parameters
FAQ
Q1: Are you a trading company or manufacturer?
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:Normally,We have only accept the MOQ is 100pcs.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Could you offer us free samples?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 2-5 days.
Q5. what is the leading time of mass production?
A: About 2-4 weeks.
Q6: what is the capacity per month?
A:It is over 8 million pieces per month for micro switch series,and over 20 million pieces per month for keyboard switch series.
