Simulated Roller Micro Lever Switch

Item Number G1003-150P07A
P1 Rating UL CUL: 0.1A 48VDC/125VAC

CQC ENEC: 0.1A 48VDC/125VAC

03 Rating UL CUL: 1A/3A 125VDC

CQC ENEC: 1A/3A 125VDC

Temperature -45~85℃ (45T85)
Electrical Life 6,000~100,000cycles
Dimension 12.8mm*6.5mm*5.8mm
Lever Type Simulated roller lever
Dielectric Strength AC1500V, 50/60Hz, 1min

Lever Roller Micro Switch

Contact Us

G10 Micro Switch Details

Microswitch Fetures

Hi, welcome to know more about our G10 simulated roller micro lever switch.

  1. Firstly, subminiature size design in 12.8mm length, so it can be installed in a small space, such as mouse, waikie talkie, telephone, alarm and so on.
  2. Meanwhile, our micro switch has vareity levers for option, this item is simulated roller lever but we also have other different type for your selection, like straight, roller, simulated roller, and custom lever.
  3. On the other hand, it is not only has reliable quality but has long life as well. For example, the mechanical life is at least 1000000 cycles. In other words, you may no meed to change your switch in the working life of the machinery.
  4. The Max. temperature for this item is 85℃, the range is from -40 to 85℃.
  5. SPDT circuit code and straight PCB terminal, but this item has SPST and other terminals for you.
  6. To sum it up, this switch is widely application and high reliability, so they should be your perfect choice.

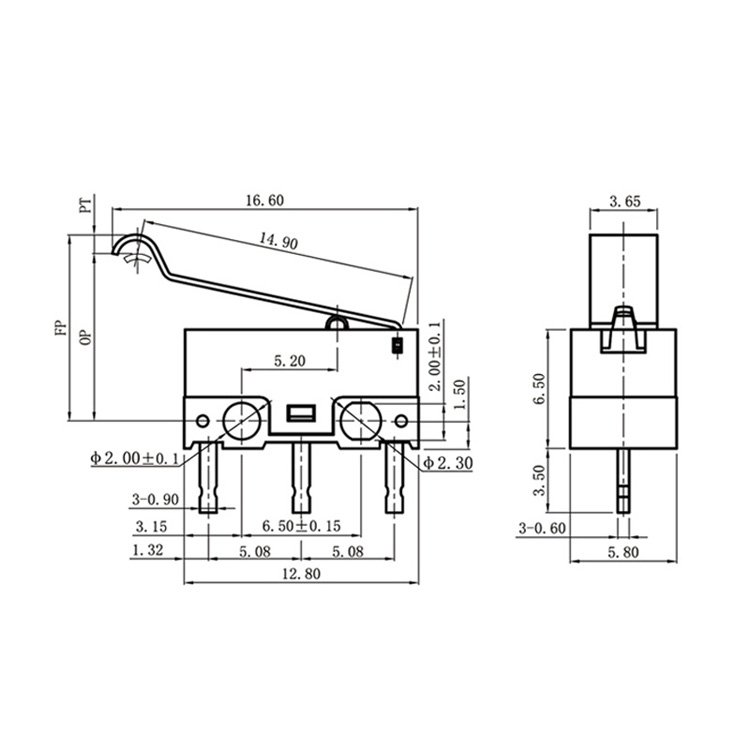

Drawing and Photoes

G1003-150P07A micro switch
Micro lever Switch
Micro lever Switch
Micro lever Switch

The Micro Switch Item Explain

mouse micro switch
As you can see, we can do the parameters as you want. So you can contact us to tell us your request. For instance, the terminal size, operating force, lever type, and etc. all of them can be custom. Therefore, we can provide all micro switch and other product you need to you satisfactorily.

Our Advantage

Why choose us?

  • Firstly, we are the factory of Zing Ear switch for many years,  so we can provide you the high standard quality micro switch products;
  • Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
  • Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
  • What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
