Project Description

Subminiature Waterproof Micro Lever Switch

Item Number G306-150E31BA-300
Rating DC 0~30V,  0.1A, DC 0~14V 0.01A
Protection Level IEC IP67
Temperature -45~125℃ (25T125)
Electrical Life 300,000cycles(30times/min.)
Circuit Code SPST Normally Closed
Terminal Type Lead wire
Voltage Resistance AC1000V, 50/60Hz, 1min
Contact Us

G306 Mini Micro Switch Details

Microswitch Features

This waterproof micro lever switch is an SPST normally closed switch and because of the dustproof and waterproof rate is IP67, we not only can use it in a wet environment but in dust surround as well.

And, like a miniature snap-action switch, it has a long simulated roller lever which can help the switch to release its operation force. For example, the operating force is 150gf without a lever. But if we have this lever, the operation force will change to another parameter. Hey, this is a 31# lever.

Meanwhile, G306-150E31BA-300 belongs to the M3 shape and post. Some equipment needs it because of the installation requirements. For example, the screw in the system is M3, customer only can use the M3 microswitch to install it.

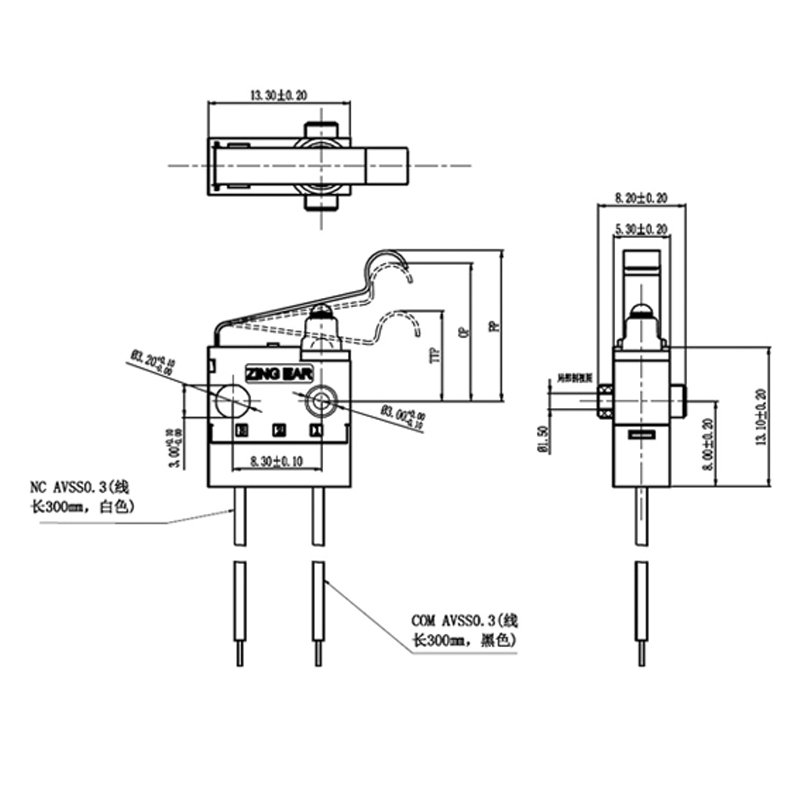

Drawing and Photoes

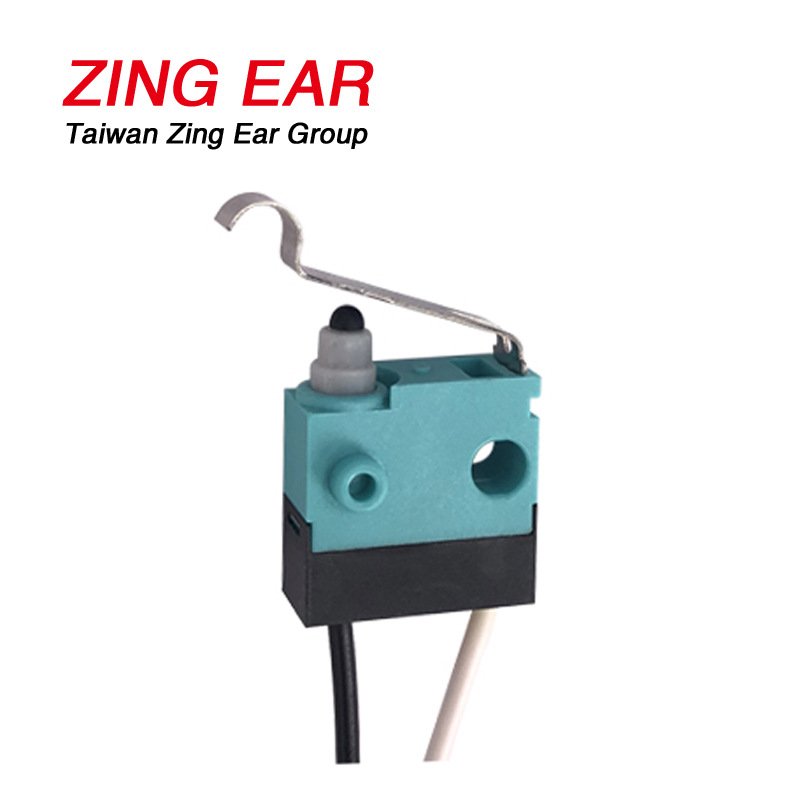

G306 Subminiature Waterproof Micro Lever Switch

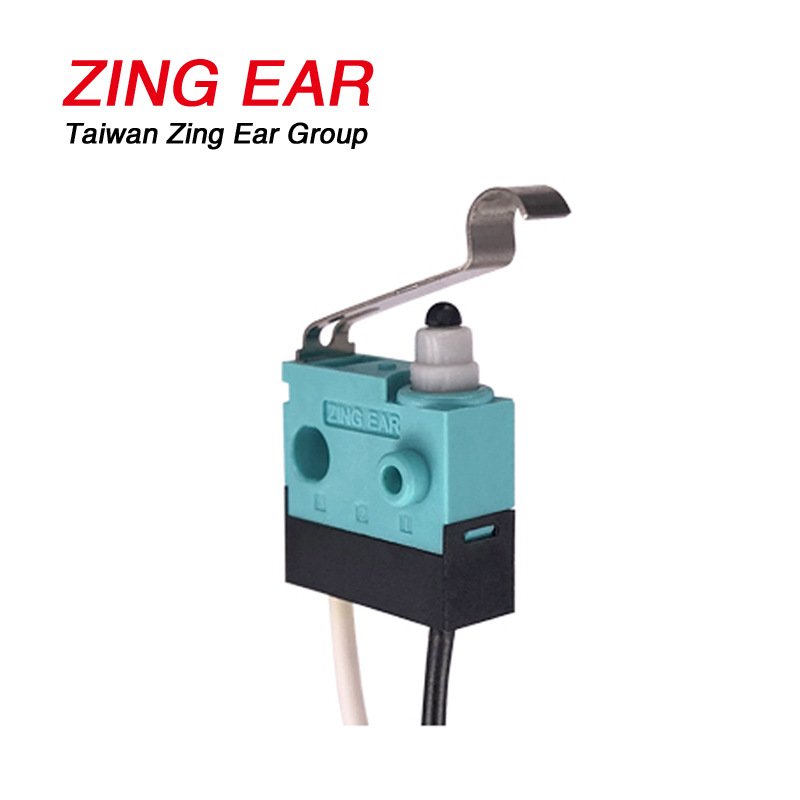

G306 Subminiature Waterproof Micro Lever Switch

Our Advantage

Why choose us?

  • Firstly, we are the factory of Zing Ear switch for many years,  so we can provide you the high standard quality micro switch products;
  • Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
  • Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
  • What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
G306 Subminiature Waterproof Micro Lever Switch
