Project Description

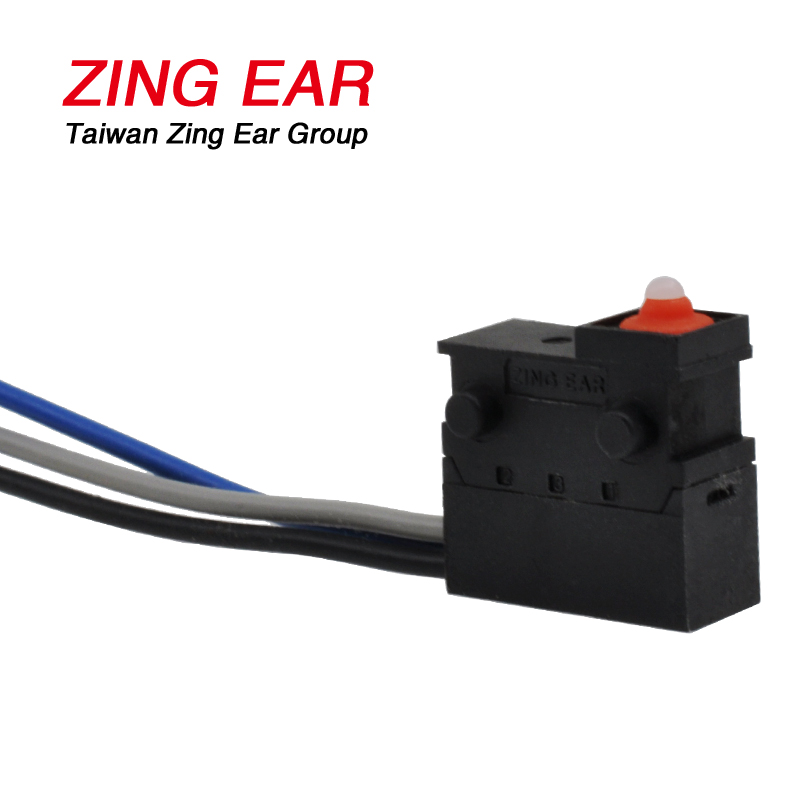

  • G303-075F00A9B Micro Switch for Sale (4)
  • G303-075F00A9B Micro Switch for Sale (3)

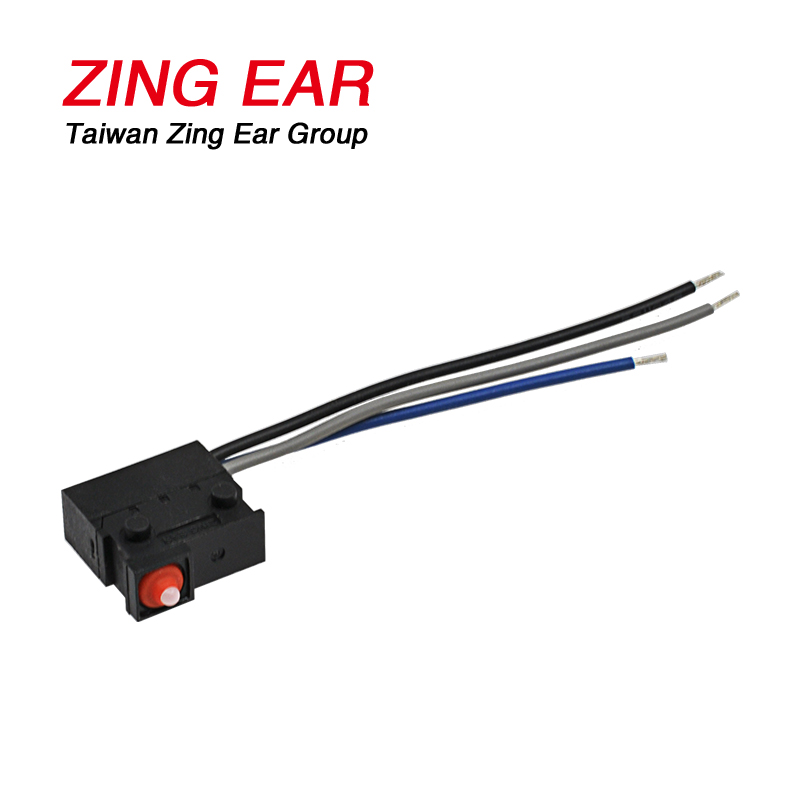

  • G303-075F00A9B Micro Switch for Sale (7)
Item Number G303-075F00A9B-GA60-T172
Rating 0.1A,125/250VAC; 3A/12VDC; 0.1A/48VDC
Electrical Life 100,000cycles
Mechanical Life 500,000cycles
Dielectric Strength 500VAC (50~60Hz)
Temperature -40~85℃ (40T85)
Lever Type Pin Plunger without lever
Storage Humidity 85%RHMax
Circuit code SPDT (Single Pole Double Throw)
Operation force 75gf (Low force)
Contact Us

G303 Micro Switch Details

Microswitch Fetures

  1. The G303-075F00A9B-GA60-T172 is a sub-mini micro switch. Firstly, its small compact size design so that it can be used in a small space working environment. Secondly, not only there has IP67 waterproof rubber ring in the pin plunger, but the waterproof coating in switch body as well. So it can work well in a wet or outdoor environment. Such as car parts, Air conditioners, toys, electronic toothbrushes, and so on.  Thus, this is the reason why the non-waterproof type is cheaper than the waterproof type. Thirdly, it only has a 75gf operation force, which is a light type.
  2. In order to meet the requirement of our customers, the G303 series micro switch has got global safety approvals, like UL CUL ENEC CQC
  3. What is more, as a years experience of switch manufacturer, our team is good at switch custom, only if you can accept our MOQ of custom, we can do it for you
  4. If you don’t need custom service, we also have a variety of levers and terminals for your option. By the way, the quantity of the item is more than 100
  5. We also provide free samples to you.

Drawing and Photoes

G303-075F00A9B Micro Switch Drawing
G303-075F00A9B Micro Switch photos

How to choose an item you want?

Huizhou Granye Industrial Co., Ltd

As an illustration, you can see the picture from the left side. It not only show the parameters of this series microswitch, but you can choose your item easily as well.

For example, if you need a switch in 0.1A 125VAC/250VAC 48VDC( or 3A 12VDC), Lead Wire, without lever SPST normally open 130gf operating force and MAX 85℃. You can choose our G303-130E00C15-GF. However, if you are not sure, you also can contact and tell us your requirement, we will recommend an item for you.

[contact-form-7 404 "Not Found"]
micoswitch waterproof IP67

Our Advantage

Why choose us?

  • Firstly, we are the factory of Zing Ear switch for many years,  so we can provide you the high standard quality micro switch for sale;
  • Secondly, we have approved by ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC, etc. Therefore, we not only can know your requirement professionally but also we provide you certificates.
  • Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you at the same time.
  • What’s more, if you need other electronic components, we can help you to buy them and ship them with our switch.
