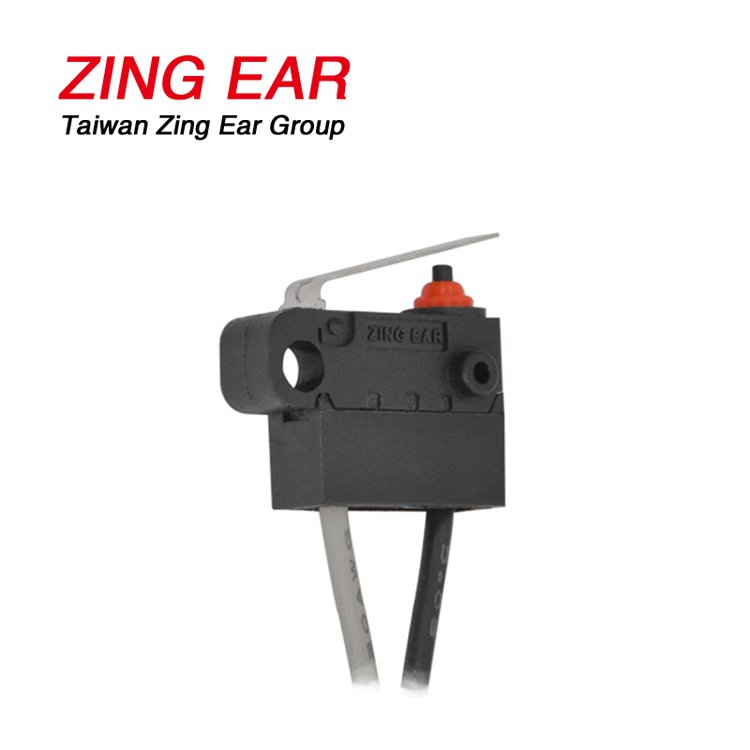

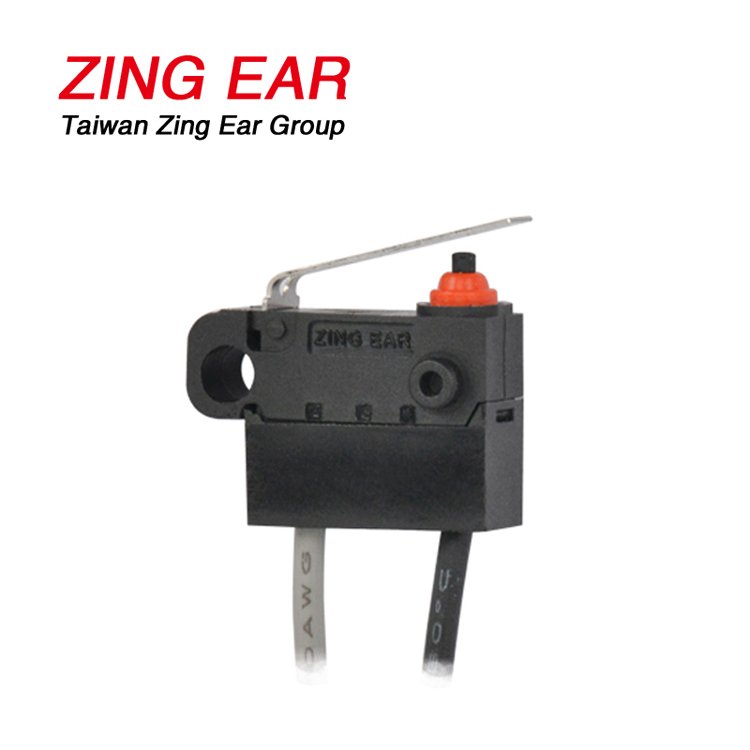

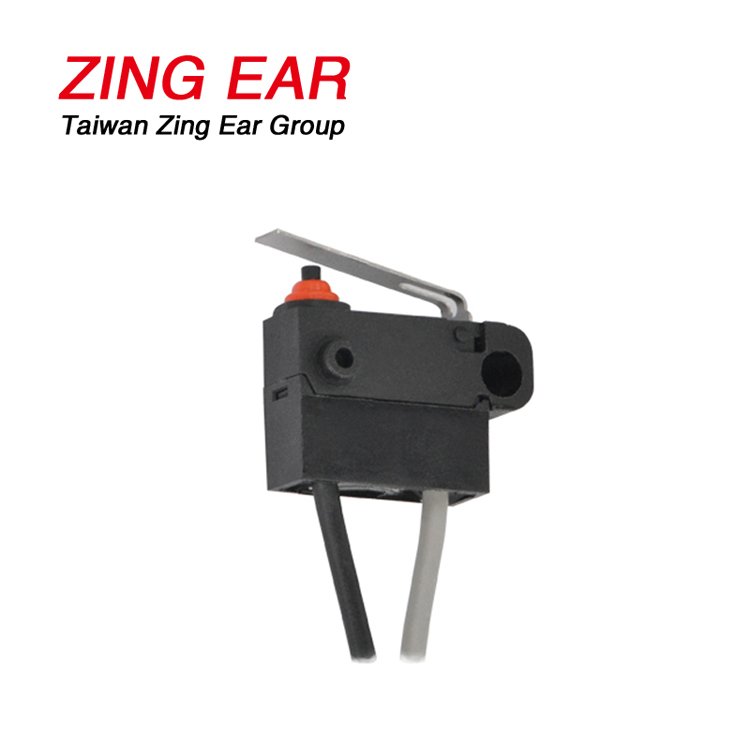

Products Pictures

G303 Micro Switch Product Description

Parameters

Rating
0. 1A, 125/250VAC; 3A/12VDC;0. 1A/48VDC ;U1E5
Operating frequency
Mechanical 60 cycles/min;
Electrical 15 cycles/min.
Contact Resistance(Initiative)
100m Ω Max (without wire type)
Contact resistance
≤ 100m Ω (Initial value)
Insulation Resistance (at500VDC)
100m Ω Min
Vibration Durability
10~55Hz,move 0. 75mm (p-p)
Dielectric Strength 500VAC (50~60Hz)
Temperature -40°C ~ + 85°C
Life expectancy
Mechanical >10,000, 000 cycles or 1, 000,000 cycles
Electrical >50,000 cycles or 100,000 cycles
Storage Humidity
85% RHMax
Waterproof Rate
IP67

Drawing

G303-130E02B7-FA SPST Normally Closed Straight Lever Waterproof Micro Switch with Wire

Micro Switch Item

G303-130E02B7-FA SPST Normally Closed Straight Lever Waterproof Micro Switch with WireG303-130E02B7-FA SPST Normally Closed Straight Lever Waterproof Micro Switch with Wire

Our Advantage

Water Proof Mini Snap ction switch
